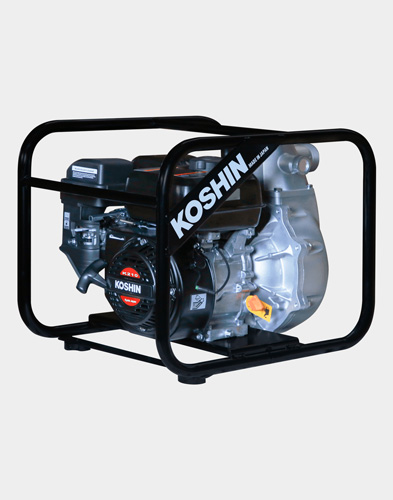

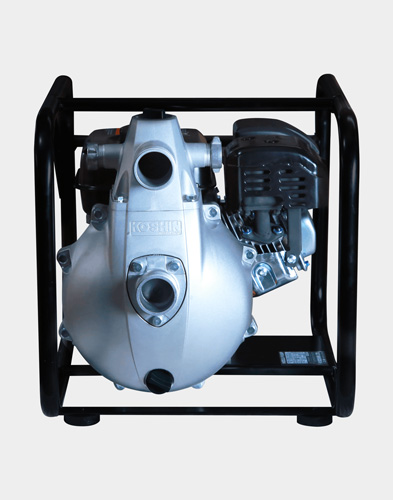

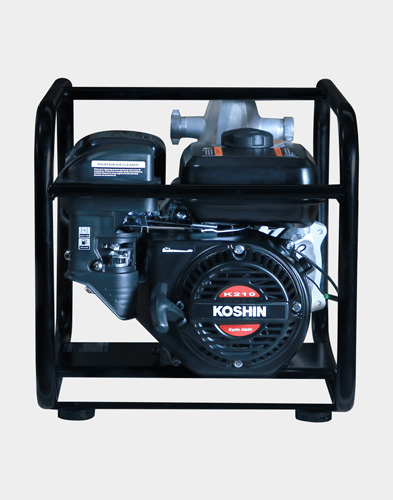

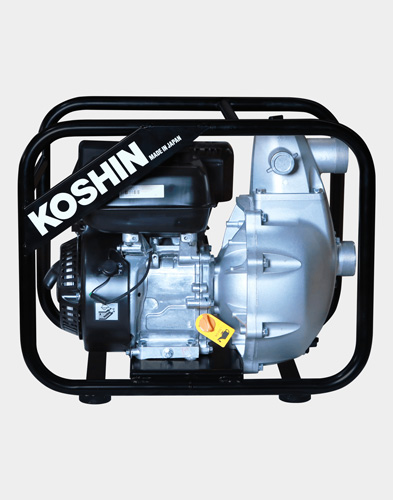

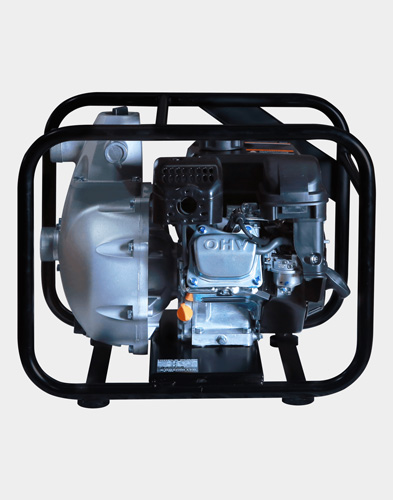

KOSHIN 2" High Pressure Water Pump SERV-50Z

KOSHIN 2″ High Pressure Water Pump SERV-50Z | Made in Japan

Name: KOSHIN 2" High Pressure Water Pump SERV-50Z | Made in Japan
SKU: 7765
Availability: InStock

৳ 75,000.00

EMI available, Tk. 6,250/Month

KOSHIN 2″ High Pressure Water Pump SERV-50Z, Made in Japan. A Perfect Petrol Water Pump for Firefighting, Sprinkler System, Construction Sites, Greater Heights, Longer Distances, and Hilly Areas Irrigation.

Max delivery: 480 L/min
Max suction lift: 8 meters
Max total head: 90 meters

Categories: High Pressure, KOSHIN, Water Pump Tags: fire fighter water pump bd, high pressure water pump price in Bangladesh, koshin water pump, petrol water pump bd, water pump price in bd

Water Pump
COUNTRY OF ORIGIN	Japan
BRAND	Koshin
MODEL	SERV-50Z
CONNECTION DIA	In: 50mm(2″); Out: 50mm(2″) / 25mm(1″) x 2
CONNECTION THREAD	Outer Pipe Thread BSP or NPT *1
TOTAL HEAD	90 m (295 ft)
DELIVERY VOLUME	480 L/min
MAX. SUCTION LIFT	8 m (26 ft)
Engine
MODEL	K210 High rpm
TYPE	Forced Air-cooled 4 stroke Gasoline Engine
DISPLACEMENT	212cc
RATED OUTPUT	4.4 kW(6.0 PS)(5.9 HP) / 4400 rpm
MAX. OUTPUT	4.9 kW(6.7 PS)(6.6 HP) / 4000 rpm
ENGINE OIL CAPACITY	0.5L
FUEL TANK CAPACITY	3.3L (0.87 USG)
CONTINUOUS OPERATING TIME	Approx 1.2 hrs
STARTING METHOD	Recoil Starter
Dimension & Weight
GROSS WEIGHT	37.5 kg (82.7 lbs)
DIMENSION L×W×H (MM)	570×450×468

KOSHIN 2” high pressure water pump SERV-50Z powered by KOSHIN K210 high RPM petrol engine, made in Japan. Ideal high pressure petrol water pump for firefighting or anything else you want to use for.

Suitable for agriculture, construction sites, firefighting, municipal/industrial irrigation, sprinkler system, greater heights and longer distances. Compact & lightweight structure, 3-way discharge flange, 4-strokes engine.

Maximum delivery: 480 L/min
Maximum suction lift: 8 meters
Maximum total head: 90 meters

The high delivery pressure makes this motor pump ideal for sprinkler systems, plantation irrigation or fire fighting. SERV-50Z and SERH-50Z have three-way connection flange (2″×1,1″×2).

Mobil grade: 20W50

Applications:

Water irrigation with sprinkle systems
Fire fighting
Pumping large quantities of water over long distances
Paddy fields irrigation
Gardening / orchard cultivation
Pumping water from wells
Filling water reservoirs
Filling or draining water from ponds
Filling or draining water from fish farms
Washing of livestock, barns or agricultural equipment
Process water with solid particles up to 3 mm

Outstanding Features:

90m Total Head, 480L/min Delivery Volume
For Sprinkler, Fire Fighting and Irrigation
Durable Cast Iron Impeller and Volute Casing

Connection Dia	In: 50 mm (2"); Out: 50 mm (2") / 25 mm (1") x 2
Connection Thread	Outer Pipe Thread BSP or NPT *1
Total Head	90 m (295 ft)
Delivery Volume	480 L/min
Max. Suction Lift	8 m (26 ft)
Engine Type	Forced Air-cooled 4-stroke Gasoline Engine
Engine Model	K210 High rpm
Made in	Japan
Displacement	212cc
Rated Output	4.4 kW(6.0 PS)(5.9 HP) / 4400 rpm
Max. Output	4.9 kW(6.7 PS)(6.6 HP) / 4000 rpm
Fuel	Automotive Unleaded Gasoline
Fuel Tank Capacity	3.3L (0.87 USG)
Continuous Operating Time	Approx. 1.2 hrs
Starting Method	Recoil Starter
Standard Accessories	a. 1 Strainer b. 3 Hose Bands (φ60) c. 2 Hose Bands (φ32) d. 1 Coupling Set (50 mm) e. 1 Closing Plate (50 mm) f. 2 Nipples (25 mm) g. 1 Quick Coupling (50 mm) h. 1 Engine Tool
Net Weight	33.9 kg (74.7 lbs)
Gross Weight	37.5 kg (82.7 lbs) (BSP model), 36.2 kg (79.8 lbs)(NPT model)
Dimensions L×W×H (mm)	570 x 450 x 468
